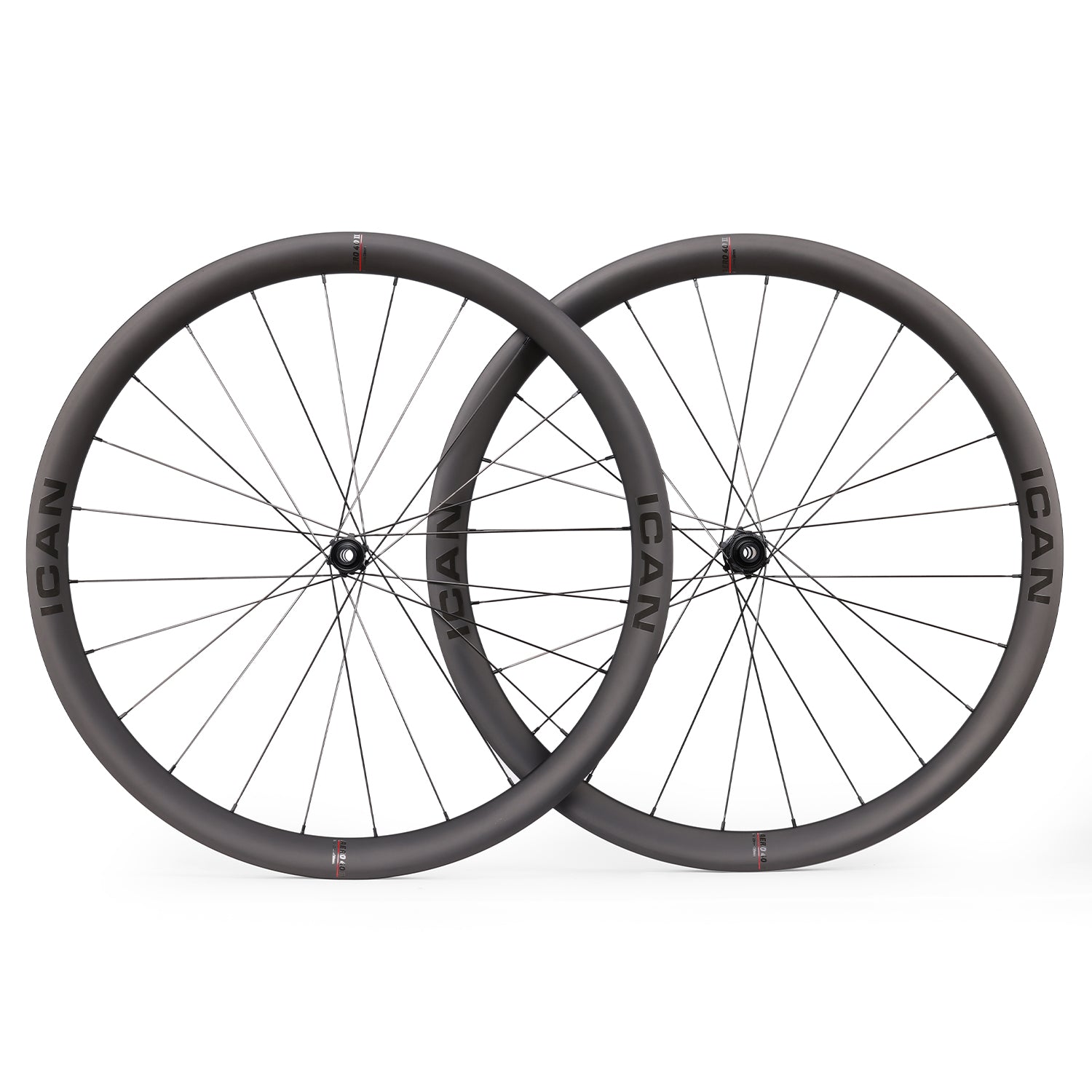

AERO 40 Disc

40 DEEP | 25 WIDE EXT | 18.35 WIDE INT | 1355G

$ 645.00 USD

Available Options

Secured and trusted checkout:

payment icon
  • World-Wide Fast Shipping

  • 60 day ride & return period

  • 730 Days Free Warranty

  • Oversea Warehouse, Local Delivery


Racing under windy or muddy conditions can be challenging. Upgrading your wheels could provide you with the competitive advantage over your opponents. Recommended for Cyclocross Racing, the Aero 40 Disc minimizes wind resistance through its aerodynamic shape. With a Disc Braking System, you do not have to worry about mad clogging your brake surface.The ICAN DT Aero 40 Disc Wheelset is a tubeless ready 40mm deep wheelset. Its 2-way clincher finish promotes easy tire installation. With tubeless tires, you do not have to worry about punctures. Tubeless tires also offer more rolling resistance. These 700C wheels are 25 mm wide. Wide-rim wheelsets provide more stability by causing the bike to assume forward momentum in a straight trajectory. From the shape of the spokes to the shape of the rims; the Aero 40 Disc wheelset features an aerodynamic profile which promotes smooth and stable air flow while in motion. The Rim is made from 100% carbon fiber (Toray T700 and T800 Carbon Cloths) which is lighter than aluminum equivalents. The Aero 40 Disc wheelset can support a rider weight of up to 105kg or 232Lbs.A wheelset is not complete without a set of hubs. The Aero 40 Disc Wheelset comes with ICAN’s D01 high-performance hubs which promote the effortless transition of power and smooth freewheel action. These ICAN hubs are secured by 24 aerodynamically sound Sapim CX-Ray spokes on each wheel. ICAN D01 hubs are compatible with 10/11 Speed Shimano Cassettes.Each purchase comes with a 2-year guarantee and a set of skewers.

Secured and trusted checkout:
Paypal
Mastercard
Visa
American Express
JCB

AERO Series Rims

The Aero Series rims materialize from a combination of Toray T700 and T800 carbon fiber cloths. A marriage of these carbon cloths produces a lighter end product in comparison to a rim made only from Toray T700 carbon fiber cloth. The Aero Series rims is 25mm wide. Wide rims offer less rolling resistance and superior stability.

2-Way Clincher Tubeless. Tubes or No-Tubes

Use either traditional tires with tubes, or tubeless tires without tubes. Tubeless tires can provide lower rolling resistance and better protection from punctures.

Endurable and Light Hub

ICAN D01 high-performance hubs which promote the effortless transition of power and smooth freewheel action.


ALLOY STRAIGHT PULL DISC HUB

Front: Sealed Bearings 2, weight: 85g

Rear: Sealed Bearings 4, weight: 238g

Sapim CX-RAY As light as a titanium spoke

The CX-Ray still receives the best results in fatigue testing of any spoke. The CX-Ray aero spoke combines excellent aerodynamics with low weight and great strength. Not only are they more aerodynamic, they also make wheels lighter and stronger. Its unique strength and flexibility make the CX-Ray suitable for most bicycle disciplines. CX-Ray spokes are used by top bike racers and triathletes around the world.

Sapim Secure Lock Nipples

Sapim Secure Lock nipple is a locking

mechanism that prevents nipples from untightening.Secure Lock nipple can achieve a stable and well defi ned deformation on the thread. Each nipple has an additional locking resistance of 18 +/- 3 cNm.



 Technical Specifications

Rim TypeClincher: Carbon, tubeless-ready
RIM MATRIAL100% Carbon Fiber Toray T700 & T800
RIMSSuperlight AERO 40
RIM DEPTH40mm
RIM WIDTHExternal/Internal: 25mm/18.35mm
BREAKING SURFACEWithout Breaking Surface
BREAK TRACK HEIGHTNo
RECOMMENDED TYRE SIZE700 x 25-40mm
FRONT SPOKE PATTERNTwo-cross
REAR SPOKE PATTERNDrive-Side/Non-Drive: Two-cross
SPOKE COUNTFront/Rear: 24/24
SPOKE TYPESapim CX-Ray
NIPPLE TYPESapim Secure Lock
FRONT HUBICAN D01, sealed cartridge bearings
REAR HUBICAN D01, sealed cartridge bearings, Shimano 10/11 Speed/Sram XD Driver 11 Speed/XDR 12 Speed/Campagnolo 11 Speed
ASSEMBLE METHODHandbuilt
EXTRAS

Rim Tapes for Clincher  (Thru Axles are not included)

WHEELSET WEIGHTFront/Rear/Total: 605g/750g/1355g  (Centerlock, 12x100/12x142mm)


MORE DETAILS


Rim

  • Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires.

  • Toray T700/T800 UD and 3K weave carbon-fibre on brake Track

  • 40mm deep super wide rounded aero section

  • 25mm outer and 18.35mm inner width ideal for 25-40mm tire widths

Spokes

  • Diameter: 2.0 - (0.9x2.2) - 2.0 mm

  • Strength on middle section: 1600 N/mm2

  • No extra hub hole design; hub manufacturer‘s guarantee is unaffected

  • More long lasting than any other spokes on the market

  • Straight-pull for excellent torsional strength and direct power transfer

  • Special alloy treatment and sophisticated production

  • Produced from high-tensile, fatigue-resistant 18/8 stainless steel conforming to the Sapim quality standard specifications

Hub

  • TaperLock spoke interface

  • Forged and CNC’d 6061-T6 heat treated aluminum alloy body

  • 3x treble-tooth pawl engagement for instant acceleration - 7.5 degrees engagement

  • 7075-T6 aluminum alloy axles

  • Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies

  • Shimano/SRAM, SRAM XD Driver, SRAM XDR Driver, Campagnolo Freebody available

  • Straight pull hub, high quality Japanese sealed EZO bearings

Nipples

  • Can be used on truing machine

  • No loose function while truing the wheel

  • Available on most current Sapim nipples

  • Easy to recognize

Tire

  • Maximum tire pressure for this rim is 120psi when used with an inner tube and 100psi when running the wheel set-up tubeless. 100 psi is more than enough for any rider on road

  • Maximum tire pressures for other tire sizes: 30mm do not exceed 80psi, 33mm do not exceed 60psi and 35-45mm do not exceed 40psi

  • Please do not exceed the maximum pressure stated on your tire

  • Suitable for tires from 25mm up to 40mm wide

Package Included

  • 1 x Wheelset

  • 1 x Clincher Rim Tape
